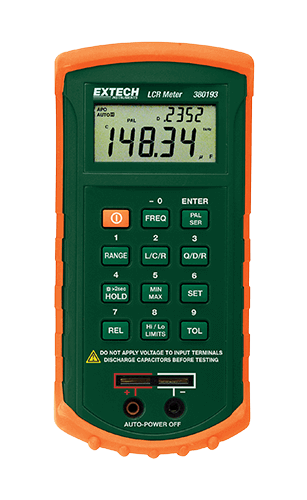

Extech 380193 Passive Component LCR Meter
| Specifications | Range | Basic Accuracy |
|---|---|---|
| Inductance | 2000.0µH, 20.000mH, 200.00mH, 2000.0mH 20.000H, 200.00H, 2000.0H, 10000H | ±(0.7%rdg) |
| Capacitance | 2000.0pF, 20.000nF, 200.00nF, 2000.0nF, 20.000µF, 200.00µF, 2000.0µF | ±(0.7%rdg) |
| Resistance | 20.000Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ | ±(0.5%rdg) |
| DF (with C) | 0 to 0.9999 | ±(0.7%rdg) |
| Q | 0 to 9999 | ±(1.2%rdg) |
| Test Freq. | 120Hz and 1kHz | |
| Dimensions/Weight | 7.56x3.58x2.1'' (19.2x9.1x5.25cm) / 12.87oz (365g) | |
