Class |
ISO Class 5 (Class 100) |
|
Air Flow |
Vertical Laminar Flow |
|
Filtration |
Aluminum Frame Mini-Pleated HEPA |
|
|
Optional ULPA Filter |
|
Efficiency |
HEPA : 99.993% for 0.3 um particle removal |
|
|
[OPTION] ULPA : 99.999% for 0.12 um particles removal |
|
Controller |
Microprocessor Control |
|
|
9 Step Air Velocity Control |
|

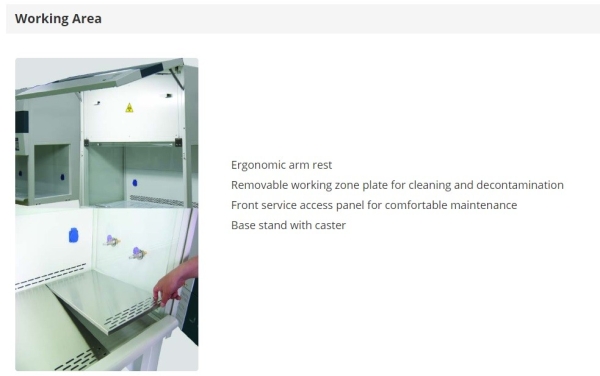

Material |
Work Platform : Stainless Steel 304 |
|
|
Body : Epoxy Powder Coated Steel |
|
Sterilization |
253nm Germicidal UV Lamp with Timer |
|

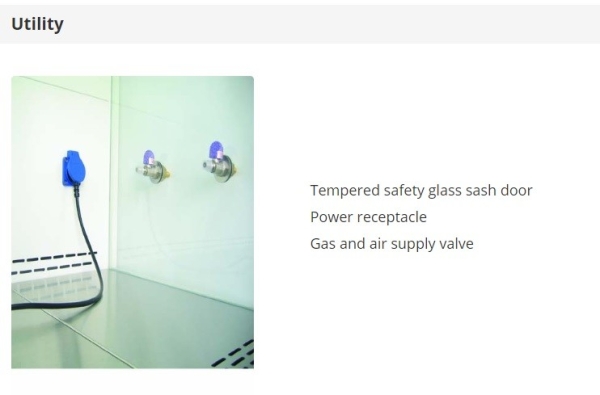

Utility |
Power Receptacles |
|
|
Gas and air supply cock |
|
Safety |
Over Current Cut-Off |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS-1363 |
Models
|
Art No. |
|||||
|
Working Width |
830 mm (3 ft) |
1205 mm(4 ft) |
1490 mm (5 ft) |
1790 mm (6 ft) |
|
|
Dimensions |
Inner |
830x526x585 |
1205x526x585 |
1490x526x585 |
1790x526x585 |
|
W x D x H mm |
Outer |
900x792x1990 |
1275x792x1990 |
1560x792x1990 |
1860x792x1990 |
|

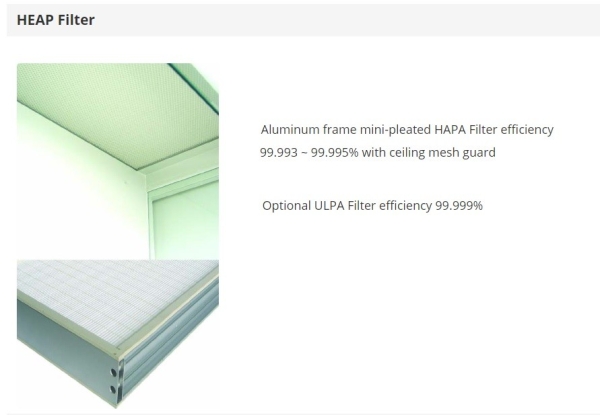

HEAP Filter |
|
0.3 um particle removal 99.993 % ~ 99.995 % |
|||
|
ULPA Filter |
Option |
0.12 um particle removal 99.999 % |
|||
|
Air Circulation |
Vertical Laminar Flow |
||||
|

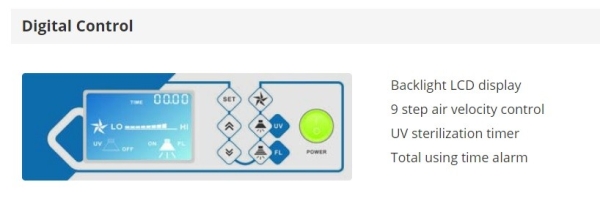

Controller |
Display |
Back Light Digital LCD |
|||
|
|
Speed Control |
9 Step Air Velocity Control from 0.3 m/sec. ~ 0.6 m/sec. |
|||
|
|
Control |
FL Lamp, UV Lamp, Blower ON/OFF, UV Timer, |
|||
|
|
|
Total Using Timer, Filter Replace |
|||
|

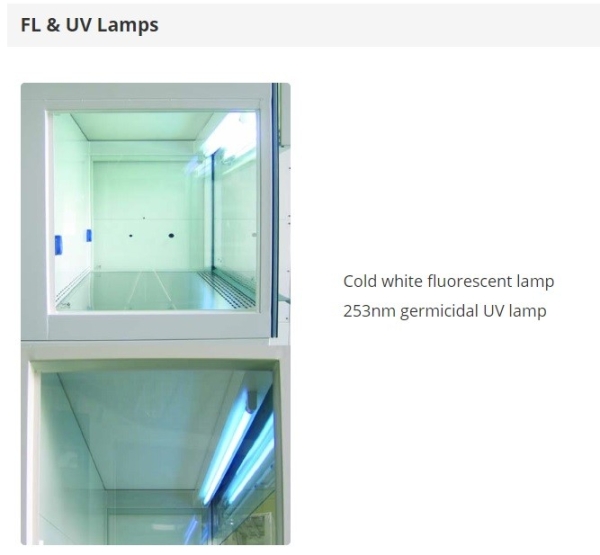

Working Lamp |
FL 20 W x 2 ea |
FL 30 W x 2 ea |
FL 30 W x 2 ea |
FL 36 W x 2 ea |
|
|
Germicidal UV Lamp |
UV 20 W x 1 ea |
UV 30 W x 1 ea |
UV 30 W x 1 ea |
UV 40 W x 1 ea |
|
|
Utility |
2 x Power Consent, 1 x Gas Cock, 1 x Air Cock |
||||
|
Electric Requirement |
220VAC 50/60Hz 1P |
||||
|
Power Rating |
0.9 Amp |
1.6 Amp |
1.6 Amp |
1.7 Amp |
|
|
Power Plug |
CEE 7/7 Schuko or BS-1363 |
||||
