Pumping Capacity |
JSBS-3000 20 liter/min JSBS-5000 40 liter/min. |
|
Ultimate Vacuum |
650 mmHg (-0.08 Mpa ABS) |
|
Bottle Capacity |
4000 cc |
|
Pump Control |
ON / OFF / Foot Pedal Switch |
|
Material |
Body : Epoxy Powder Coated Steel |
|
|
Bottle : Glass |
|
Utility |
50 mm hydrophobic PTFE Disc Filter |
|
|
Silencer |
|
|
Portable carrying handle |
|
Safety |
Automatic pump cut-off when full bottle |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS-1363 |
Models
|
Art No. |

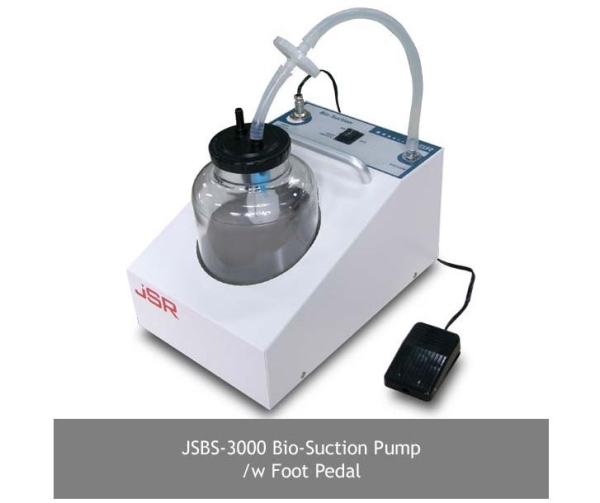

JSBS-3000 |
JSBS-5000 |
|
|
Pumping Capacity |
20 liter / min. |
40 liter / min. |
|
|
Ultimate Vacuum |
650 mmHg (-0.08 Mpa ABS) |
||
|
Collection Bottle |
|
||
|
|
Capacity |
4000 cc |
|
|
|
Material |
Glass Bottle /w cap |
|
|
|
Utility |
Cap with overflow protection cut-off level sensor |
|
|
|
|
Inlet / Outlet fitting /w cap |
|
|
Pump Control |
On/ Off / Foot Pedal |
||
|
Safety |
∅50 mm hydrophobic inline PTFE filter protects aerosol ingestion |
||
|
|
Automatic pump shut off when bottle is full |
||
|
Accessories included |
Main body built-in vacuum pump system |
||
|
|
Collection reservoir bottle |
||
|
|
∅50 mm hydrophobic inline PTFE filter |
||
|
|
Foot Pedal |
||
|
|
Silencer |
||
|
|
Silicone Tubings |
||
|
Dimensions |
240 x 370 x 330 mm |
250 x 400 x 330 mm |
|
|
Electric Requirement |
220VAC 50/60Hz 1P |
||
|
Power Plug |
CEE 7/7 Schuko or BS-1363 |
||
