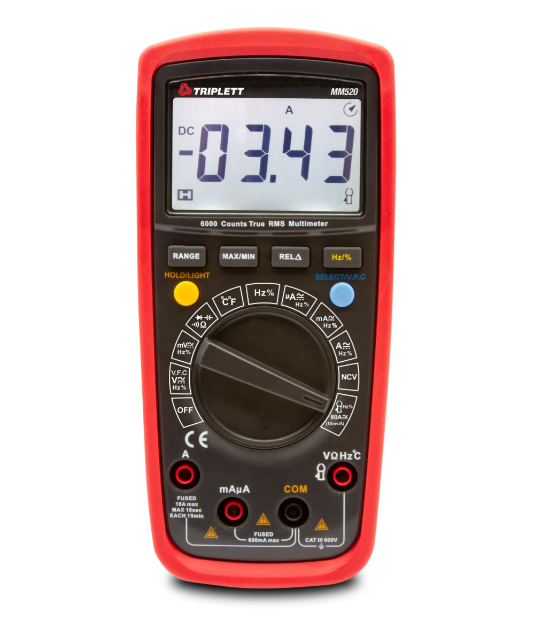

True RMS Multimeter with Low pass filter - (MM520)
-
True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
-
µA Current measurement
-
Low Pass Filter (LPF)
-
Built-in NCV Detector
-
60A Clamp Adapter input can be used with any adapter that has a 10mV/A output
-
Data Hold and Relative mode
-
Min/Max and Auto power off
-
Low battery indicator
-
CAT III 600V safety category
-
ETL listed
|
|
MM520 |
MM525 |
|
Display counts |
6000 count |
6000 count EBTN w/bargraph |
|
Basic Accuracy |
±0.7% |
±0.7% |
|
AC/DC Voltage |
600V |
600V |
|
AC/DC Current |
10A |
10A |
|
AC/DC µA Current |
600µA |
600µA |
|
Resistance |
60MΩ |
60MΩ |
|
Temperature |
-40 to 1832°F
(-40 to 1000°C) |
-40 to 1832°F
(-40 to 1000°C) |
|
Capacitance |
100mF |
100mF |
|
Frequency |
10MHz |
10MHz |
|
Duty Cycle |
0.1 to 99.9% |
0.1 to 99.9% |
|
Continuity |
<10Ω |
<50Ω |
|
Lo Pass Filter (LPF) |
Yes |
Yes |
|
LoZ |
— |
Yes |
|
NCV Detector |
Yes |
Yes |
|
Clamp Adapter Input |
10mV/A (60A max) |
— |
|
Safety Category |
CAT III-600V |
CAT III-600V |
|
Dimensions |
6.9 x 3.2 x 1.9''
(175 x 81 x 48.5mm) |
6.9 x 3.2 x 1.9''
(175 x 81 x 48.5mm) |
|
Weight |
12.3oz. (350g) |
12.2oz. (345g) |
