1._JSCB-SB_Series_Safety_Cabinet.pdf (1.79 MB) 1._JSCB-SB_Series_Safety_Cabinet_Technical_Data.pdf (732.17 KB)|
Class |
Class II Type A2 |
|
Air Flow |
Vertical Laminar Flow |
|
|
70 % Recirculation 30 % Exhaust |
|
Filtration |
Aluminum Frame Mini-Pleated HEPA |
|
|
Optional ULPA Filter |
|
Efficiency |
HEPA : 99.993% for 0.3 um particle removal |
|
|
[OPTION] ULPA : 99.999% for 0.12 um particles removal |
|

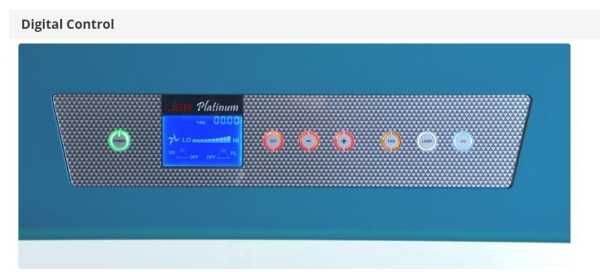

Controller |
Microprocessor Control |
|
|
9 Step Air Velocity Control |
|
Material |

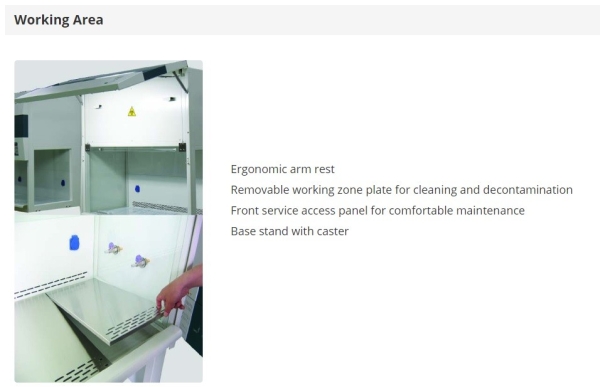

Work Platform : Stainless Steel 304 |
|
|
Body : Epoxy Powder Coated Steel |
|

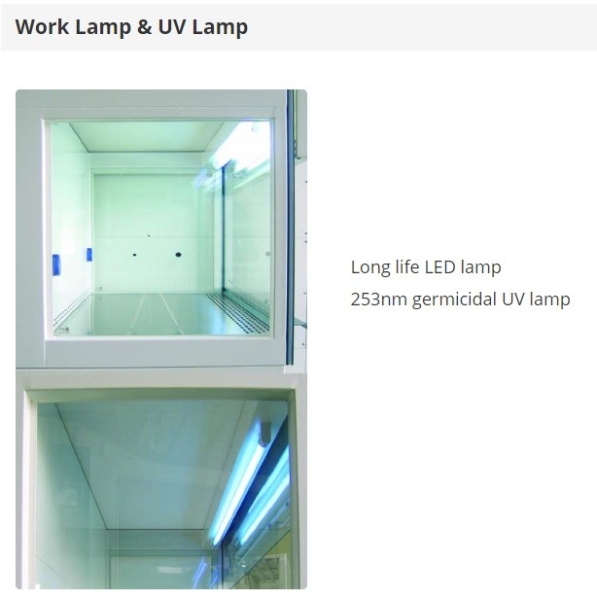

Sterilization |
253nm Germicidal UV Lamp with Timer |
|

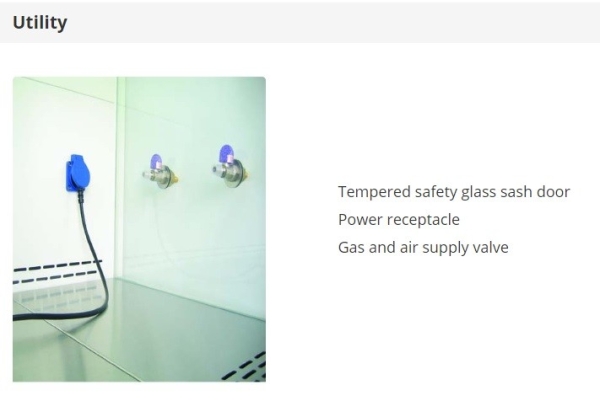

Utility |
Power Receptacles |
|
|
Gas and air supply cock |
|
Safety |
Over Current Cut-Off |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS-1363 |
Models
|
Model |
||||
|
Performance Data |
|
|
|
|
|
Safety Class |
BSC Class II Type A2 |
|||
|
Air flow type |
70% re-circulation / 30% exhaust |
|||
|
Down-Flow |
0.3 m/sec |
|||
|
In-Flow |
0.5 m/sec |
|||
|
Filtration Efficiency |
HEPA filter 99.993~99.995 % for particles > 0.3 um |
|||
|
(Nominal) |
ULPA filter 99.999 % for particles > 0.12 um |
|||
|
Noise Level |
< 65 dB |
|
|
|
|
Work Light |
1510 Lux |
|
|
|
|
Type of Work Light |
LED 11 watt x 2 ea |
LED 15 watt x 2 ea |
LED 20 watt x 2 ea |
LED 20 watt x 2 ea |
|
Germicidal UV Lamp 253.7 nm |
20 Watt |
30 Watt |
30 Watt |
40 Watt |
|
Ultraviolet Output |
7.5 W |
13.4 W |
13.4 W |
19.8 W |
|
|
|
|
|
|
|
Dimension Data |
|
|
|
|
|
Working Width |
830 mm (3 ft) |
1205 mm (4 ft) |
1490 mm (5 ft) |
1790 mm (5 ft) |
|
Int. Dims. (W x D x H mm) |
830 x 550 x 585 |
1205 x 550 x 585 |
1490 x 550 x 585 |
1790 x 550 x 585 |
|
Ext. Dims. (W x D x H mm) w/o stand |
900 x 800 x 1290 |
1275 x 800 x 1290 |
1560 x 800 x 1290 |
1860 x 800 x 1290 |
|
Ext. Dims. (W x D x H mm) /w stand |
900 x 800 x 1970 |
1275 x 800 x 1970 |
1560 x 800 x 1970 |
1860 x 800 x 1970 |
